unraid 使用traefik （三）细节配置-RSG-人生观

前言：

最近也没什么好玩的，群里也有人询问一些traefik的使用细节，所以在这里对大家问的一些比较多的问题，进行解答！

如果你是第一次看到这个文章，请线阅读下面的两篇文章进行配置以及安装，在traefik可以正常使用，可以正常访问的情况下在参考下面的教程内容进行配置！

常见问题、以及注意事项

一、端口号：

很多小伙伴，在配置的时候，总会出现端口号不知到写多少，或者是写错了，导致无法访问，反向代理的问题。

如何判断端口怎么写？

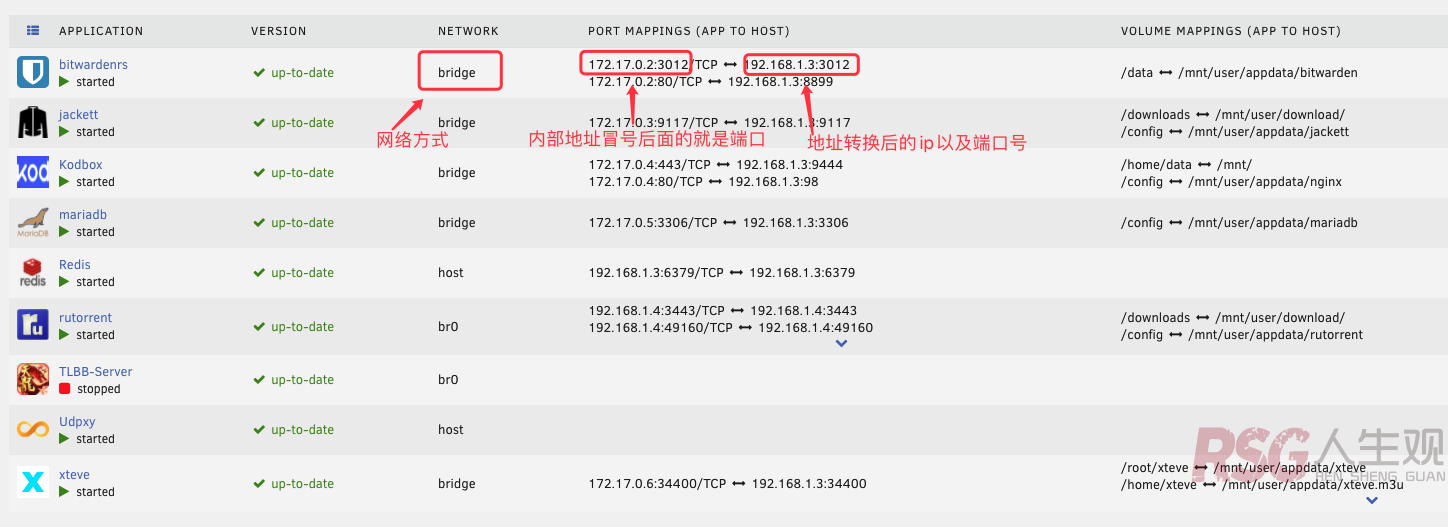

如果与traefik是使用lable方式连接的，这里你需要找到程序的监听端口，其实在unraid的docker页面上面就有的，只是大家没注意！

这里如果你是使用lable的方式与traefik 进行配置的，你要写内部端口，也就是图片中内部地址冒号后面的，大部分情况下内部和外部的端口都是一样的，但是有的情况特殊端口号可能内外不同，但是lable的方式与traefik进行配置的，走的是docker内部的地址也就是图片中的172开头的地址，所以这里不能写外部的地址，要不然就会出现无法连接的情况！

另一种方式！通过写动态文件反响代理的

这一种多半是应用一些不是和traefik一个网桥内，或者是本服务器以外同局域网，或者外网的反向代理！

这些都是需要通过写traefik动态配置文件来做到的，这个比较简单，你在配置的时候用你的本地pc 怎么访问，就怎么写内网的地址和端口号，前提是你的pc和你的traefik是同一个局域网，广域网的不受此限制（直接写广域网地址）！

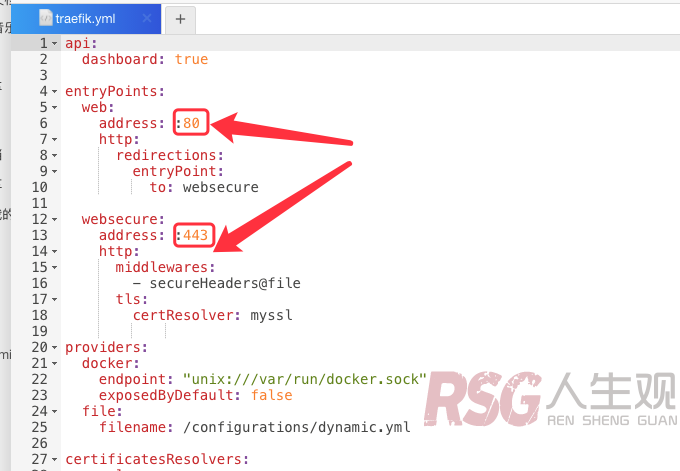

这里在说一个大家都知道的默认端口，给新人看的！

http	80
https	443

以上两个端口是大部分程序的web界面监听的端口！

二、启动失败，提示acme.json问题

这类问题，unraid上多犯，其他linux环境上没有这个问题。

只要在unraid上执行权限修复，都会导致came.json的权限变更，官方的默认要求acme.json 权限是600 这里在用命令改一下就行了

chmod 600 /文件路径/acme.json #注意文件路径要自行修改

三、证书自动签发TSL(旧称SSL)

也就是我们访问的时候地址窗口的小锁的标志！

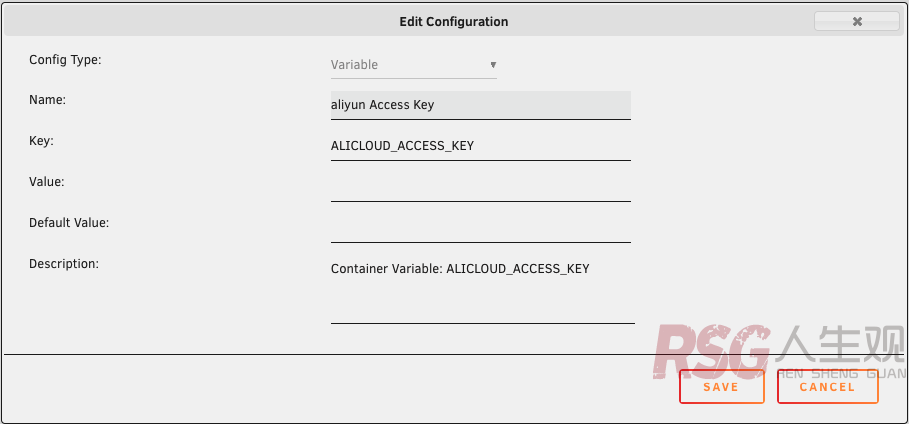

在我的教程中，默认的配置，提供的是aliyun的方式，当然也有很多其他平台的方式，只是我没写，下面我简单写一下给你们个参考！

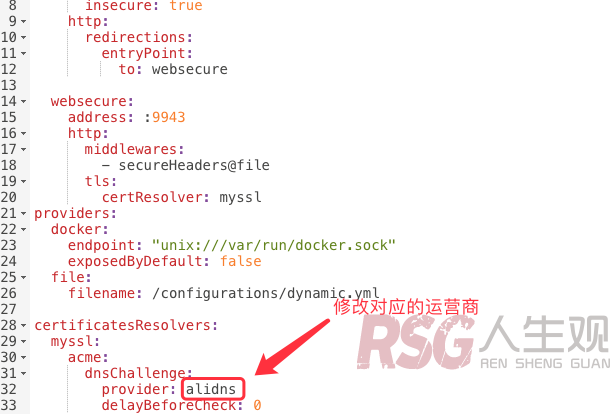

在静态配置文件内找到，下面的内容！

然后进行修改，这里我给大家一些运营商的名称（官方文档内提供）

Provider Name	Provider Code	Environment Variables
ACME DNS	`acme-dns`	`ACME_DNS_API_BASE`, `ACME_DNS_STORAGE_PATH`	Additional configuration
Alibaba Cloud	`alidns`	`ALICLOUD_ACCESS_KEY`, `ALICLOUD_SECRET_KEY`, `ALICLOUD_REGION_ID`	Additional configuration
ArvanCloud	`arvancloud`	`ARVANCLOUD_API_KEY`	Additional configuration
Auroradns	`auroradns`	`AURORA_USER_ID`, `AURORA_KEY`, `AURORA_ENDPOINT`	Additional configuration
Autodns	`autodns`	`AUTODNS_API_USER`, `AUTODNS_API_PASSWORD`	Additional configuration
Azure	`azure`	`AZURE_CLIENT_ID`, `AZURE_CLIENT_SECRET`, `AZURE_SUBSCRIPTION_ID`, `AZURE_TENANT_ID`, `AZURE_RESOURCE_GROUP`, `[AZURE_METADATA_ENDPOINT]`	Additional configuration
Bindman	`bindman`	`BINDMAN_MANAGER_ADDRESS`	Additional configuration
Blue Cat	`bluecat`	`BLUECAT_SERVER_URL`, `BLUECAT_USER_NAME`, `BLUECAT_PASSWORD`, `BLUECAT_CONFIG_NAME`, `BLUECAT_DNS_VIEW`	Additional configuration
Checkdomain	`checkdomain`	`CHECKDOMAIN_TOKEN`,	Additional configuration
CloudDNS	`clouddns`	`CLOUDDNS_CLIENT_ID`, `CLOUDDNS_EMAIL`, `CLOUDDNS_PASSWORD`	Additional configuration
ClouDNS	`cloudns`	`CLOUDNS_AUTH_ID`, `CLOUDNS_AUTH_PASSWORD`	Additional configuration
Cloudflare	`cloudflare`	`CF_API_EMAIL`, `CF_API_KEY` ⁵ or `CF_DNS_API_TOKEN`, `[CF_ZONE_API_TOKEN]`	Additional configuration
CloudXNS	`cloudxns`	`CLOUDXNS_API_KEY`, `CLOUDXNS_SECRET_KEY`	Additional configuration
ConoHa	`conoha`	`CONOHA_TENANT_ID`, `CONOHA_API_USERNAME`, `CONOHA_API_PASSWORD`	Additional configuration
Constellix	`constellix`	`CONSTELLIX_API_KEY`, `CONSTELLIX_SECRET_KEY`	Additional configuration
deSEC	`desec`	`DESEC_TOKEN`	Additional configuration
DigitalOcean	`digitalocean`	`DO_AUTH_TOKEN`	Additional configuration
DNSimple	`dnsimple`	`DNSIMPLE_OAUTH_TOKEN`, `DNSIMPLE_BASE_URL`	Additional configuration
DNS Made Easy	`dnsmadeeasy`	`DNSMADEEASY_API_KEY`, `DNSMADEEASY_API_SECRET`, `DNSMADEEASY_SANDBOX`	Additional configuration
DNSPod	`dnspod`	`DNSPOD_API_KEY`	Additional configuration
Domain Offensive (do.de)	`dode`	`DODE_TOKEN`	Additional configuration
DreamHost	`dreamhost`	`DREAMHOST_API_KEY`	Additional configuration
Duck DNS	`duckdns`	`DUCKDNS_TOKEN`	Additional configuration
Dyn	`dyn`	`DYN_CUSTOMER_NAME`, `DYN_USER_NAME`, `DYN_PASSWORD`	Additional configuration
Dynu	`dynu`	`DYNU_API_KEY`	Additional configuration
EasyDNS	`easydns`	`EASYDNS_TOKEN`, `EASYDNS_KEY`	Additional configuration
EdgeDNS	`edgedns`	`AKAMAI_CLIENT_TOKEN`, `AKAMAI_CLIENT_SECRET`, `AKAMAI_ACCESS_TOKEN`	Additional configuration
External Program	`exec`	`EXEC_PATH`	Additional configuration
Exoscale	`exoscale`	`EXOSCALE_API_KEY`, `EXOSCALE_API_SECRET`, `EXOSCALE_ENDPOINT`	Additional configuration
Fast DNS	`fastdns`	`AKAMAI_CLIENT_TOKEN`, `AKAMAI_CLIENT_SECRET`, `AKAMAI_ACCESS_TOKEN`	Additional configuration
Gandi	`gandi`	`GANDI_API_KEY`	Additional configuration
Gandi v5	`gandiv5`	`GANDIV5_API_KEY`	Additional configuration
Glesys	`glesys`	`GLESYS_API_USER`, `GLESYS_API_KEY`, `GLESYS_DOMAIN`	Additional configuration
GoDaddy	`godaddy`	`GODADDY_API_KEY`, `GODADDY_API_SECRET`	Additional configuration
Google Cloud DNS	`gcloud`	`GCE_PROJECT`, Application Default Credentials ² ³, [`GCE_SERVICE_ACCOUNT_FILE`]	Additional configuration
Hetzner	`hetzner`	`HETZNER_API_KEY`	Additional configuration
hosting.de	`hostingde`	`HOSTINGDE_API_KEY`, `HOSTINGDE_ZONE_NAME`	Additional configuration
HTTP request	`httpreq`	`HTTPREQ_ENDPOINT`, `HTTPREQ_MODE`, `HTTPREQ_USERNAME`, `HTTPREQ_PASSWORD` ¹	Additional configuration
HyperOne	`hyperone`	`HYPERONE_PASSPORT_LOCATION`, `HYPERONE_LOCATION_ID`	Additional configuration
IIJ	`iij`	`IIJ_API_ACCESS_KEY`, `IIJ_API_SECRET_KEY`, `IIJ_DO_SERVICE_CODE`	Additional configuration
Infomaniak	`infomaniak`	`INFOMANIAK_ACCESS_TOKEN`	Additional configuration
INWX	`inwx`	`INWX_USERNAME`, `INWX_PASSWORD`	Additional configuration
ionos	`ionos`	`IONOS_API_KEY`	Additional configuration
Joker.com	`joker`	`JOKER_API_MODE` with `JOKER_API_KEY` or `JOKER_USERNAME`, `JOKER_PASSWORD`	Additional configuration
Lightsail	`lightsail`	`AWS_ACCESS_KEY_ID`, `AWS_SECRET_ACCESS_KEY`, `DNS_ZONE`	Additional configuration
Linode v4	`linode`	`LINODE_TOKEN`	Additional configuration
Liquid Web	`liquidweb`	`LIQUID_WEB_PASSWORD`, `LIQUID_WEB_USERNAME`, `LIQUID_WEB_ZONE`	Additional configuration
Loopia	`loopia`	`LOOPIA_API_PASSWORD`, `LOOPIA_API_USER`	Additional configuration
LuaDNS	`luadns`	`LUADNS_API_USERNAME`, `LUADNS_API_TOKEN`	Additional configuration
manual	`manual`	none, but you need to run Traefik interactively ⁴, turn on debug log to see instructions and press `Enter`.
MyDNS.jp	`mydnsjp`	`MYDNSJP_MASTER_ID`, `MYDNSJP_PASSWORD`	Additional configuration
Mythic Beasts	`mythicbeasts`	`MYTHICBEASTS_USER_NAME`, `MYTHICBEASTS_PASSWORD`	Additional configuration
Namecheap	`namecheap`	`NAMECHEAP_API_USER`, `NAMECHEAP_API_KEY`	Additional configuration
name.com	`namedotcom`	`NAMECOM_USERNAME`, `NAMECOM_API_TOKEN`, `NAMECOM_SERVER`	Additional configuration
Namesilo	`namesilo`	`NAMESILO_API_KEY`	Additional configuration
Netcup	`netcup`	`NETCUP_CUSTOMER_NUMBER`, `NETCUP_API_KEY`, `NETCUP_API_PASSWORD`	Additional configuration
Netlify	`netlify`	`NETLIFY_TOKEN`	Additional configuration
NIFCloud	`nifcloud`	`NIFCLOUD_ACCESS_KEY_ID`, `NIFCLOUD_SECRET_ACCESS_KEY`	Additional configuration
NS1	`ns1`	`NS1_API_KEY`	Additional configuration
Open Telekom Cloud	`otc`	`OTC_DOMAIN_NAME`, `OTC_USER_NAME`, `OTC_PASSWORD`, `OTC_PROJECT_NAME`, `OTC_IDENTITY_ENDPOINT`	Additional configuration
OVH	`ovh`	`OVH_ENDPOINT`, `OVH_APPLICATION_KEY`, `OVH_APPLICATION_SECRET`, `OVH_CONSUMER_KEY`	Additional configuration
Openstack Designate	`designate`	`OS_AUTH_URL`, `OS_USERNAME`, `OS_PASSWORD`, `OS_TENANT_NAME`, `OS_REGION_NAME`	Additional configuration
Oracle Cloud	`oraclecloud`	`OCI_COMPARTMENT_OCID`, `OCI_PRIVKEY_FILE`, `OCI_PRIVKEY_PASS`, `OCI_PUBKEY_FINGERPRINT`, `OCI_REGION`, `OCI_TENANCY_OCID`, `OCI_USER_OCID`	Additional configuration
PowerDNS	`pdns`	`PDNS_API_KEY`, `PDNS_API_URL`	Additional configuration
Rackspace	`rackspace`	`RACKSPACE_USER`, `RACKSPACE_API_KEY`	Additional configuration
reg.ru	`regru`	`REGRU_USERNAME`, `REGRU_PASSWORD`	Additional configuration
RFC2136	`rfc2136`	`RFC2136_TSIG_KEY`, `RFC2136_TSIG_SECRET`, `RFC2136_TSIG_ALGORITHM`, `RFC2136_NAMESERVER`	Additional configuration
Route 53	`route53`	`AWS_ACCESS_KEY_ID`, `AWS_SECRET_ACCESS_KEY`, `[AWS_REGION]`, `[AWS_HOSTED_ZONE_ID]` or a configured user/instance IAM profile.	Additional configuration
RimuHosting	`rimuhosting`	`RIMUHOSTING_API_KEY`	Additional configuration
Sakura Cloud	`sakuracloud`	`SAKURACLOUD_ACCESS_TOKEN`, `SAKURACLOUD_ACCESS_TOKEN_SECRET`	Additional configuration
Scaleway	`scaleway`	`SCALEWAY_API_TOKEN`	Additional configuration
Selectel	`selectel`	`SELECTEL_API_TOKEN`	Additional configuration
Servercow	`servercow`	`SERVERCOW_USERNAME`, `SERVERCOW_PASSWORD`	Additional configuration
Stackpath	`stackpath`	`STACKPATH_CLIENT_ID`, `STACKPATH_CLIENT_SECRET`, `STACKPATH_STACK_ID`	Additional configuration
TransIP	`transip`	`TRANSIP_ACCOUNT_NAME`, `TRANSIP_PRIVATE_KEY_PATH`	Additional configuration
VegaDNS	`vegadns`	`SECRET_VEGADNS_KEY`, `SECRET_VEGADNS_SECRET`, `VEGADNS_URL`	Additional configuration
Versio	`versio`	`VERSIO_USERNAME`, `VERSIO_PASSWORD`	Additional configuration
Vscale	`vscale`	`VSCALE_API_TOKEN`	Additional configuration
VULTR	`vultr`	`VULTR_API_KEY`	Additional configuration
Yandex	`yandex`	`YANDEX_PDD_TOKEN`	Additional configuration
Zone.ee	`zoneee`	`ZONEEE_API_USER`, `ZONEEE_API_KEY`	Additional configuration
Zonomi	`zonomi`	`ZONOMI_API_KEY`	Additional configuration
